CHEVRON 4/4S-CF
)
)
)
)
)
)

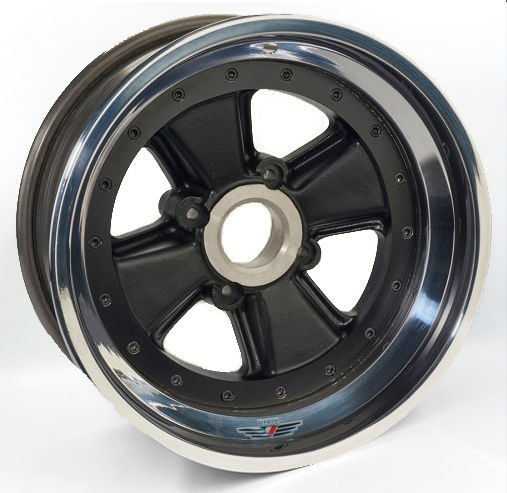

4 Stud fixing is ideal for many early cars including the B6, B8, and some variants of the B19, and earlier Formula 2, 3 and Atlantic cars such as the B20 and B27.

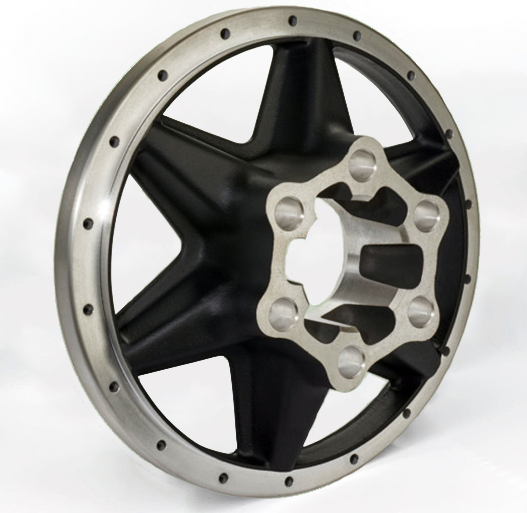

The Centre Fix is Ideal for the B16 sports car forward and later Formula 5000, 2, 3
Primarily designed for our 13”, but can be adapted for our 15” rims if required.
Cast in AZ91 magnesium, x‐ray tested, stress relieved and finished in our own machine shop.
Centre can be machined for either out board or inboard mounted rims (Inboard mount shown)
4 No. x 3/8” x 4.0” PCD stud fixing with 4 No. 0.820” x ¾” drive boss location or Centre fix with 4 No. 7/16 drive pegs.
249mm rim location and 266 mm fixing PCD (Other variation maybe possible, please enquire).
