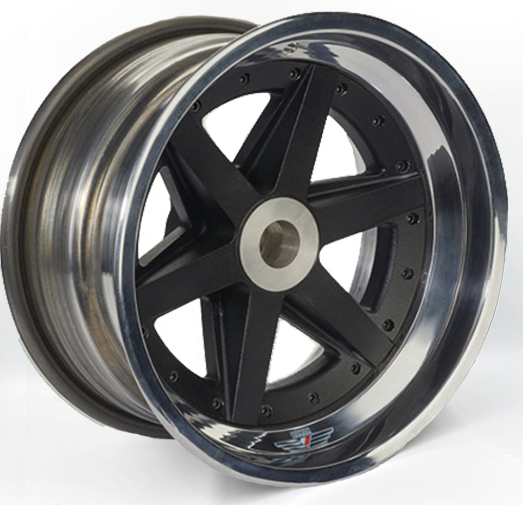

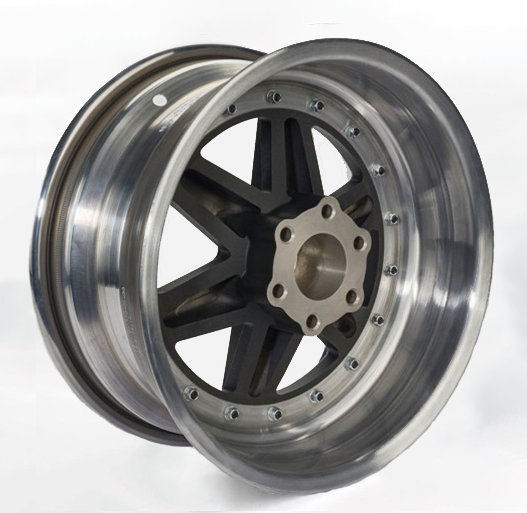

Primarily designed for our 13”, but can be adapted for our 15” rims if required for some larger car applications such as F5000.
Cast in AZ91 magnesium, x‐ray tested, stress relieved and ﬁnished in our own machine shop.
Centre can only be machined with inboard mounted rims.
6 No.7/16”drive pegs hole on a 3.500” PCD.
249mm rim location and 266 mm ﬁxing PCD.
